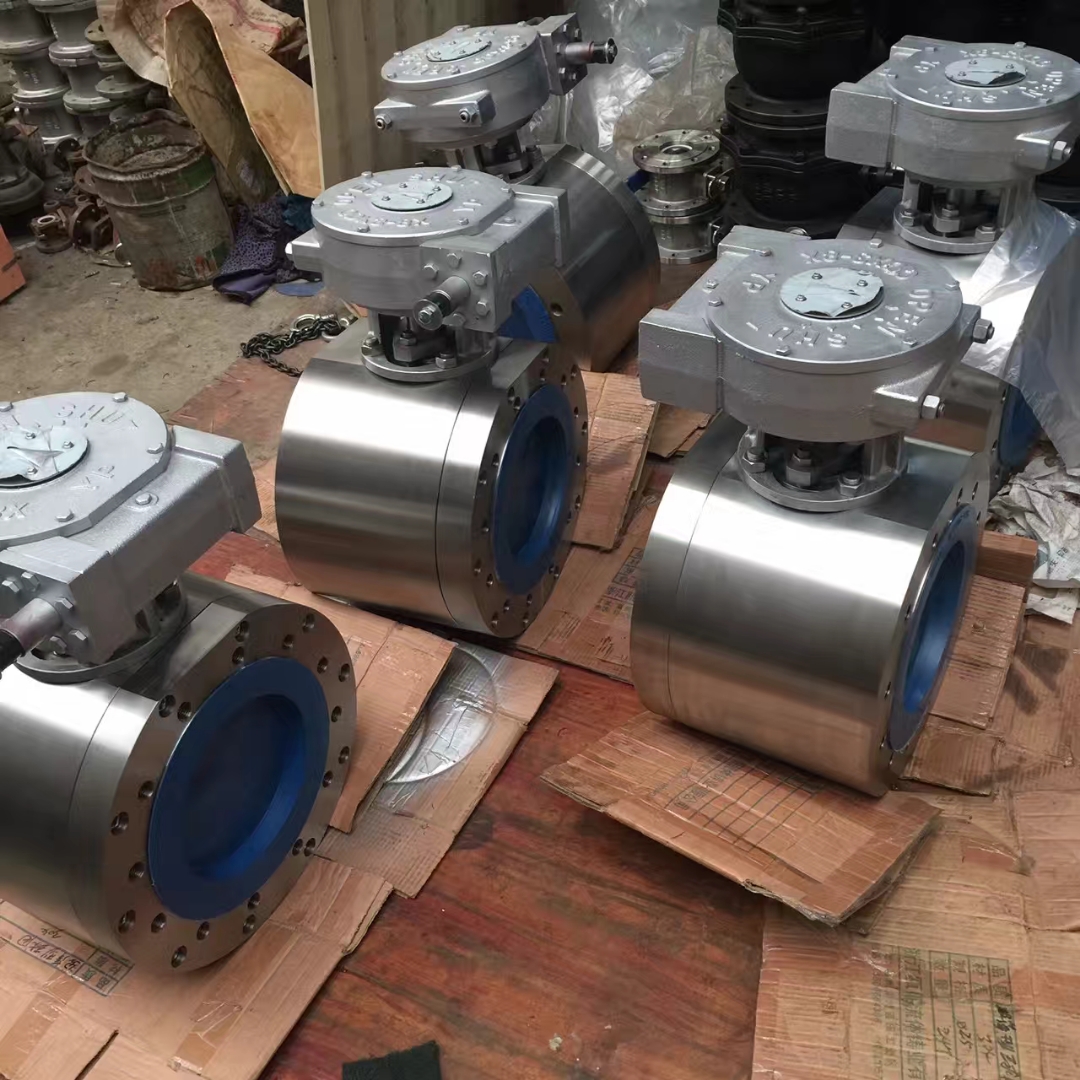

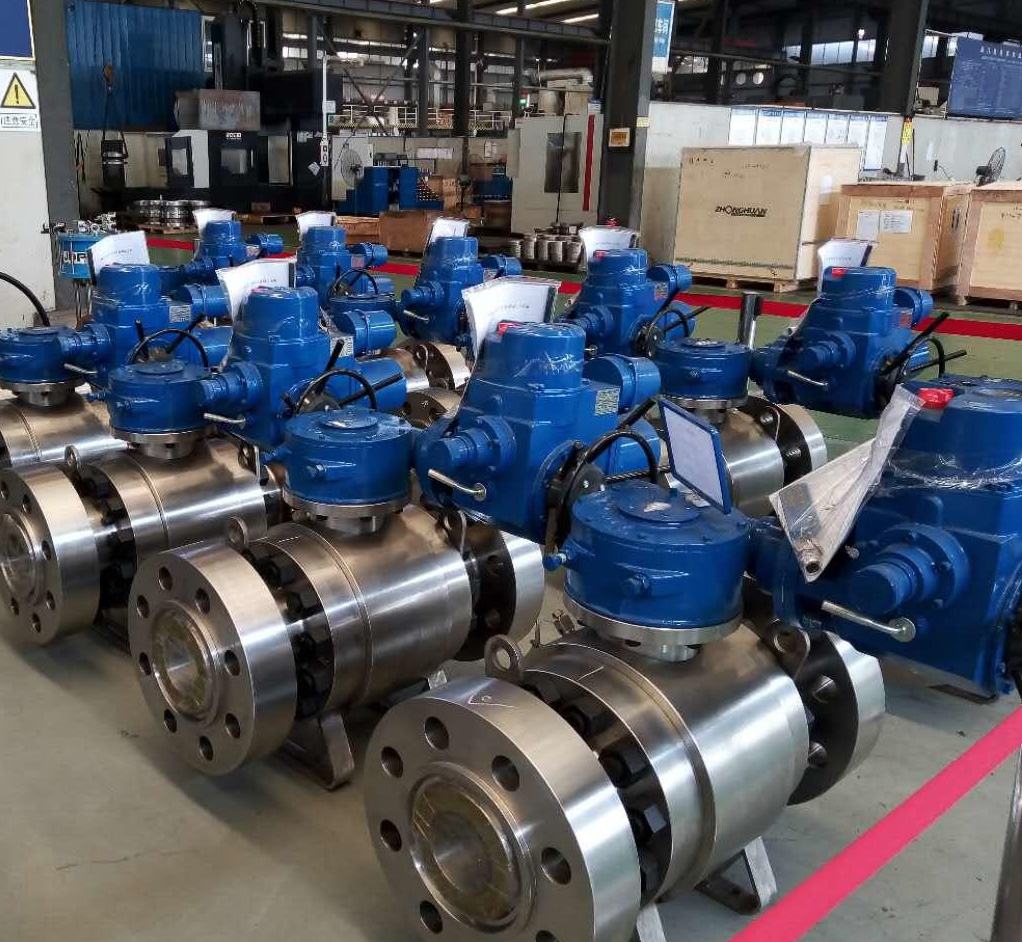

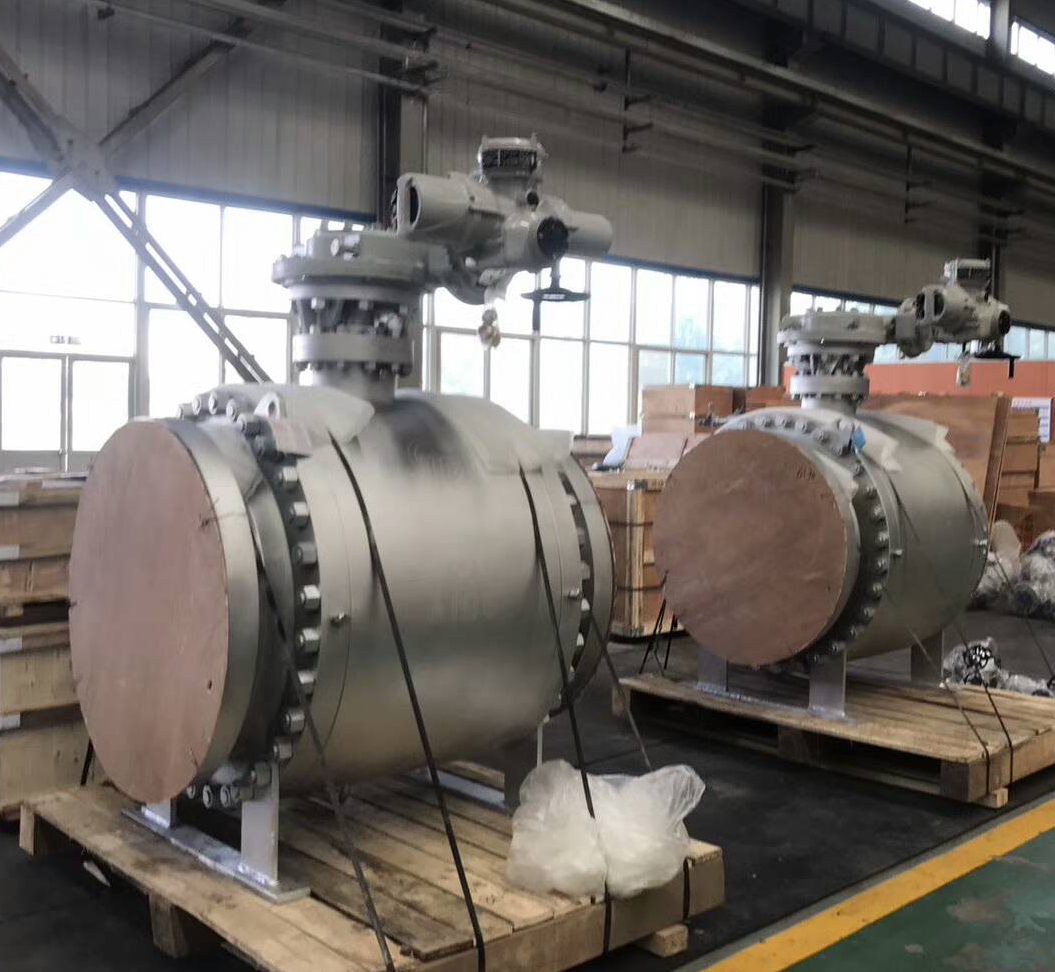

Gear operated Trunnion Mounted Ball Valve

This series of mounted ball valve are mainly used to truncate and get through the medium in the pipeline. The body of this ball valve is supported by the upper and lower fixed shaft or fixed plate. The valve seat adopts spring. So, this valve has lower torque and excellent seal feature. Furthermore, valve seat of the ball valve has varied seal materials and choose different materials of valve seat based on the medium’s temperature (seal of soft valve seat to metal ball or metal valve seat to the body of ball valve) in summary, this product has extensive temperature using range. This series of mounted ball valves are mainly used industry area of petroleum, natural gas, petrochemical, chemical, electric power plant, and mineral etc.

Design Feature:

- Bolted body, split body (2pc & 3pc)

- Full bore or reduced bore

- Flanged end or welding end

- Double block and bleed

- Seat function: single piston effect; double piston effect

- Automatic internal relief of body pressure

- Emergency sealant injection system

- Fire safe design

- Anti-static device

- Anti-blow out stem design

- Body vent device stem extension (according to requirements)

- Sour service: material for pressure-containing and pressure-controlling parts and bolting shall meet the requirements of NACE MR0175

Design Specifications:

- Design: API599 API6D

- Pressure-temperature rating: ASME B16.34

- Face-to-face dimensions for butt weld and flanged valves: ASME B16.10

- Flange design: ASME B16.5

- Butt welding design: ASME B16.25

Body Material:

A216-WCB (Carbon Steel), A217-WC6 (1-1/4Cr-1/2Mo), A217-WC9 (2-1⁄4Cr–1Mo), A217-C5 (5Cr–1⁄2Mo), A217-C12 (9Cr–1Mo), A352-LCB (Carbon Steel), A352-LCC (Carbon Steel), A351-CF8M (18Cr–9Ni–2Mo), A351-CF3M (18Cr–9Ni–2Mo)

Pressure Testing:

Each valve is pressure tested in accordance with API 6D, API 598, or special customers' requirements as applicable.
