Design Features:
- 1 PC / 2 PC / 3 PC design
- Blow-out Proof Stem
- Firesafe design
- Mounting pad option
Product Detail:
- Size：NPS 1/2″～48″, DN 15～1200
- Pressure rating: class 150～600,PN 6～100
- Basic design: BS 5351, API 6D
- Face to face dimensions: ASME B16.10
- Face to face dimensions: EN 558-1(flanged ends), EN 12982(welding ends)
- Connecting dimensions: ASME B16.5(flanged ends), ASME B 16.25(welding ends)
- Connecting dimensions: EN 1092-1(flanged ends), EN 12627(welding ends)

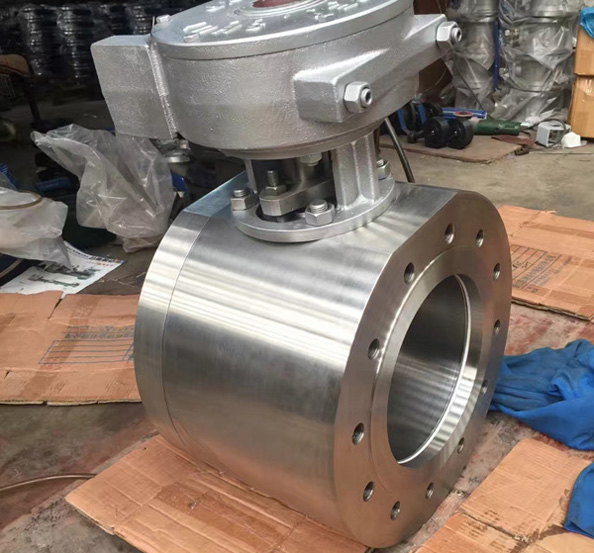

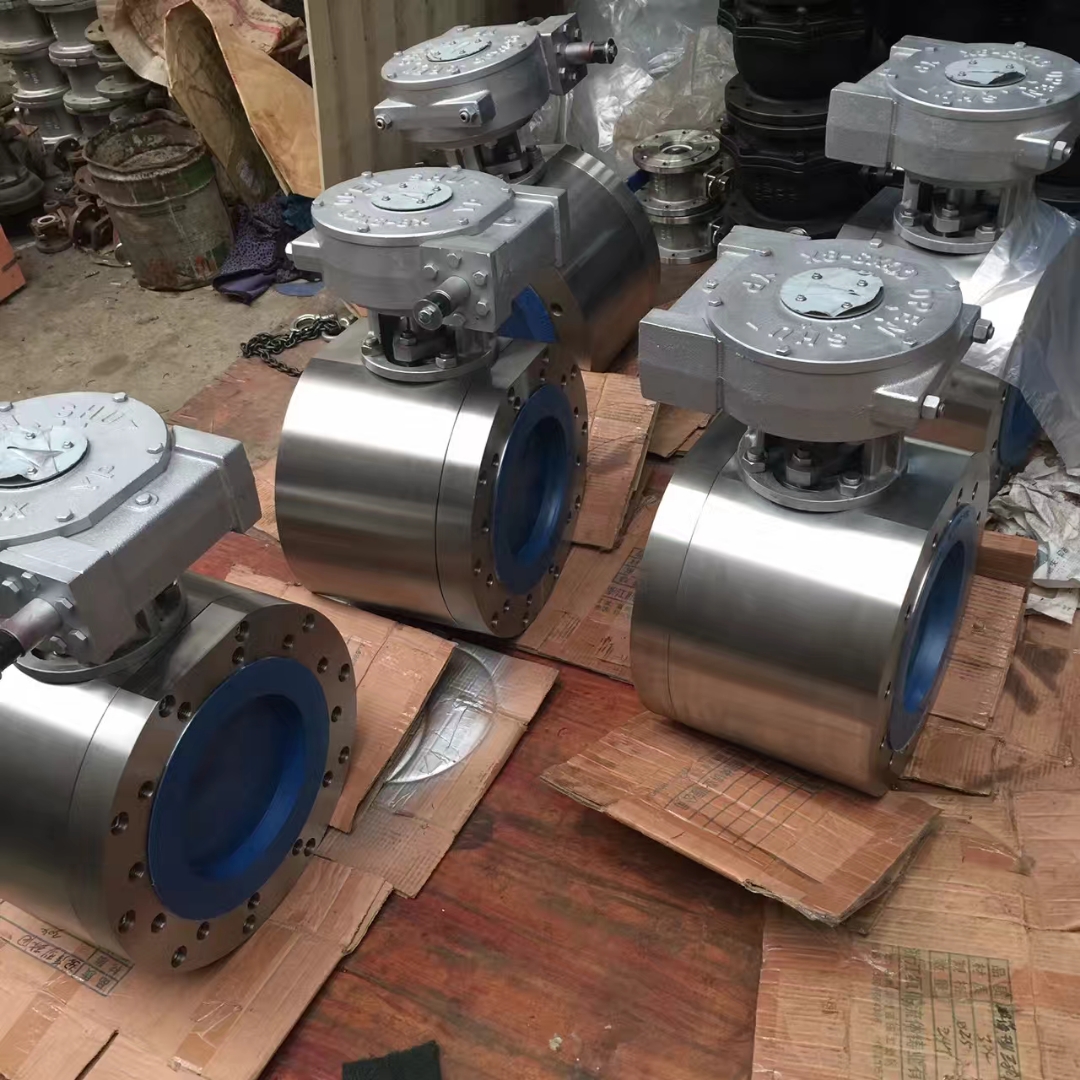

- Operation: lever, worm gear, electric actuator, pneumatic actuator.
- Body Material: Stainless steel 304/316/304L/316L
Design Specifications:
- Design: API599 API6D
- Pressure-temperature rating: ASME B16.34
- Face-to-face dimensions for butt weld and flanged valves: ASME B16.10
- Flange design: ASME B16.5
- Butt welding design: ASME B16.25
- PED 97/23/EC
Pressure Testing:
Each valve is pressure tested in accordance with API 6D, API 598, or special customers' requirements as applicable.
Application:
Used in industrial applications and more general utility purposes wherever flow needs to be controlled, including chemical and petrochemical, food and beverage, as well as Water, Oil and Gas (WOG) industries. Our Stainless Ball Valves are manufactured in Stainless Steel 304/316 upon request.
